To guarantee the exact orientation of the NX101 cam cleat, northfix is pleased to offer the specially-designed NX 201 base.

This patented accessory solves the problem of obtaining the optimum fixed-and-yet-adjustable cam cleat angle so long sought after by demanding crews.

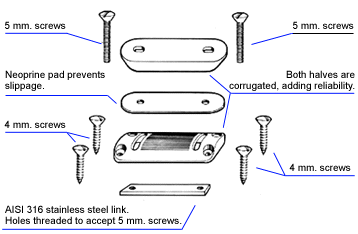

Its beauty is its simplicity. The NX 201 is composed of two movable Delrin parts, with a Neoprine pad and an AISI 316 stainless steel link. The base top slides on a bed of corrugated Delrin and Neoprine, increasing friction between the halves. Cleat slippage is thus prevented, adding a measure of reliability where needed most.

To use, set the clam cleat on the base at the required angle, unscrew the cleat, move it to the required position, and rescrew. northfix is once again pleased to offer an uncomplicated answer to the demands of the discerning crew.

CAM CLEAT BASE SPECIFICATIONS
LENGTH	66 mm.
HEIGHT (WITHOUT CLEAT)	15 mm.
WIDTH	36 mm.
WEIGHT	35 gm.
BASE SCREWS	4 mm.
